Novorbis: Retrofit Emission Control Device

Novorbis: Retrofit Emission Control Device



Retrofit Emission Control Device
Service Location India
Generator 62 kVA to 2000 kVA

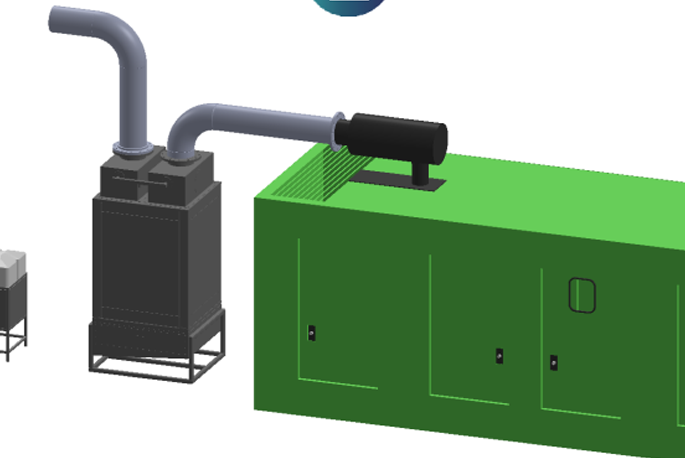

  • Novorbis Carbonfree is one of the patented filterless diesel retrofit emission control device. It's also an economical and efficient way to meet new EPA mandates and the National Green Tribunal order O.A 681/2018. Specially designed for diesel Genset customers, the best way to filter out pollutants and harmful particulates. It recovers up to 85% of diesel soot, improving air quality and reducing your costs as it has 10 years of lifespan. We will be the game- changer you want to see in the world!

    • Unmatched Warranty:
    • ZCummins® ‘K50 series’ diesel engine generating sets are a truly cost effective solution to long term power need backed by industry best, 2 years / 5000 hrs warranty, for the entire generating set. With superior experience in technology, design capability and commitment reliability and quality we offer an unmatched 5 years or 5000 hours (including above 2 years) warranty coverage on 5 critical components (5C) of the engine – Cylinder Head, Camshaft, Crankshaft, Cylinder Block, Connecting Rod against manufacturing defect.

    Cummins Advantage:
    • Special features of Cummins® ‘K50 series’ engines like STC (Step Timing Controls) injectors, low temperature aftercooler, square cumbustion chamber, optimised turbocharging and precision heavy duty camshaft make these engines the ultimate in exceptional fuel efficiency all across the operating range.

    Single Source Power Assurance:
    • Design, manufacture and testing of engine, alternator and other accessories is done by Cummins Group of companies for optimum performance and is backed by a countrywide product support network with a single source responsibility for the entire package.

    Standard Scope:
    • Engine Cummins® ‘K50 series’ direct injection, water cooled engine, 16 cylinder, 4 stroke, rated at 1500 RPM, conforming to ISO 3046 / IS 13018 has the following. specifications:
    • Cummins PT fuel pump
    • Cummins heavy duty ESTC injectors
    • Holset turbocharger, pulse tuned exhaust manifold,
    • stainless steel exhaust flexible connections
    •  Radiator or heat exchanger, coolant inhibitor
    • Plate type lube oil cooler
    • Outboard aftercoolers
    • Full flow paper element filters - fuel, lube oil and bypass
    • Dry type replaceable paper element air cleaner with
    • restriction indicator
    • Flywheel housing & flywheel to suit single/ double
    • bearing alternator
    • Holset flexible coupling for double bearing alternator
    • Starting motor – Electric, battery charging alternator
    • Cummins PowerCommand® microprocessor based
    • genset controller
    • First fill lube oil and coolant.

    Alternator:
    • Seperately excited, self-regulated - Class ‘H’ insulation
    • Salient pole revolving field
    • Single bearing
    • PMG standard
    • Space heater & RTD & BTD’s only sensor - (without scanner).

    Accessories:
    • Silencer suitably optimized to reduce noise
    • Sturdy base rail
    • 990 ltrs. free standing fuel tank
    • 4 x 12 V dry, uncharged batteries with connecting
    • leads and terminals
