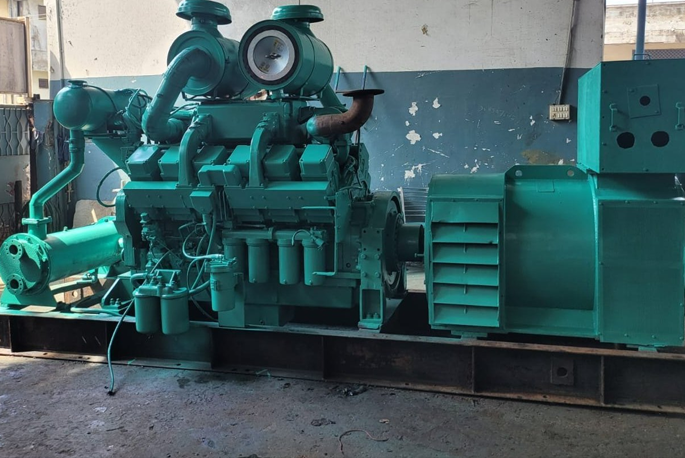

750kVA Cummins C750D5P Silent Diesel Generator

TECHNICAL DATA SHEET OF TRANSFORMERS
Service Location	All Over India
Dimensions (L x W x H)	2269 x 1436 x 1764 mm ( LXWXH ) ( Engine )
Bore (mm) x Stroke (mm)	159 mm x 159 mm
Brand	Cummins
Power Rating	750kVA
Genset Model	C750D5P
Engine Model	KTA38-G12
BHP	1069
Duty	Prime
Alternator Frame	HCI634W
Genset Controller	PC3.3
Output Voltage	415 Volts
Frequency	50 Hz
Power Factor	0.8 (lag)
Phase	Three Phase
No. of Cylinders	12 'Vee'
Displacement	50.3 ltrs
Output - Prime	1470 bhp (1097 kWm) 1
Compression Ratio	13.9:1
Piston Speed	7.95 m/s
Lubricating Oil Sytem Capacity	177 Litre
Coolant capacity (engine + radiator)	440 Litre
Fan Air Flow Across Radiator	27357 ltrs/sec
Exhaust Temperature	529 Degree Celsius
Insulation	Class H
Standard Enclosure	IP 23
Lubricating Oil Sytem Capacity	177 Litre
Stator Winding	Double Layer Lap
Telephone interference Factor	50%
Total Harmonic Factor	2%
Genset Dimensions	8500x 2500x2975 mm
Weight	9253 kg
Fuel Tank Capacity	990 Litre

Phone: +91-8700249494

The Cummins® K38 series heavy-duty engine and world class Stamford alternator powered diesel generator set.
Proven technology with mechanical simplicity of Cummins PT fuel system.
Advanced in-cylinder technology and 2P2L Cooling system to meet latest emission norms without any after-treatment device.
Smart aesthetic and superior finish.
Compact in size with optimum power to weight ratio.

Environment Friendly Power:

Class defining technology engine is designed to meet stringent exhaust emission tests as per revised MoEF norms, thus offering environment friendly power.
The Cummins® diesel generator sets are available with the lowest noise levels in its range.

Lowest Operating Cost and Comprehensive Warranty:

Highly reliable and durable product
All elements are designed to work together to maximize efficiency even at part loads, offering the advantage of lowest operating costs.
500 Hours / 1 year service interval
Industry acknowledged best-in-class comprehensive
warranty on the entire package including rubber components.

Single Source Power Assurance:

All the major components – the engine, alternator, control system and canopy are designed, manufactured and tested by Cummins India.
Best and Largest customer support network in India, capable of providing round-the-clock service and spares support.

Engine:

Cummins K38 series, 12 cylinder, Vee, 4 stroke, radiator cooled engine.
Highly stable and reliable design with square engine Well designed air handling system with Dry type, Heavy duty, Replaceable paper element air cleaner with restriction indicator.
Outboard aftercooling with 2 pump 2 loop system.
Optimised turbocharger for increased altitude. capabilities.Best in class fuel economy with PT fuel system with Electronic Step Timing Control (ESTC) injectors which smoothly stabilise engine speed under load with A1 class electronic governing Dual fuel filter system: Pre filter including water separator and Water In Fuel (WIF) sensor and main filter.
Standard integral set-mounted radiator system, designed
and tested for 50°C ambient temperature
Full flow spin on lube oil filter
Plate type lube oil cooler
First fill of lube oil and coolant
Electrical starter motor with soft start engagement feature
Battery charging alternator
2 x 12 V DC batteries.

Alternator:

Stamford HC4 alternator frames from Cummins Generator Technologies
Brushless type, Screen protected, Revolving field, Self excited alternator conforming to IS/IEC 60034-1.
PMG standard
Better motor starting capability
Best in class efficiency
Compact design with sealed bearings for longer life and lesser maintenance.
Impregnation on all wound components for better mechanical strength
