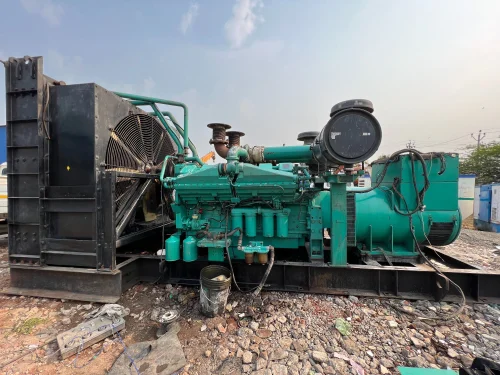

1500kVA Cummins Diesel Generator Repair Service



TECHNICAL DATA SHEET OF TRANSFORMERS
Service Location All Over India
Type of Service 1500kVA Cummins Diesel Generator Repair Service
Mode of Service Offline
Mode of Payment Online and Offline
  • Cummins® ‘K50 series’ diesel engine with strong regrindable crankshaft, high strength connecting rod, low pressure fuel lines, STC (Step Timing Controls) injectors and high volume coolant system make ‘K50 series’ generating sets, more reliable and durable. Engines have clocked millions of hours operating in some of the world’s most demanding conditions. Current engines are regularly upgraded with new technologies for better performance and economy. The ultimate proof of superior performance and reliability is the fact that Cummins® entities worldwide source these engines from Cummins India for their markets.

Unmatched Warranty:
  • ZCummins® ‘K50 series’ diesel engine generating sets are a truly cost effective solution to long term power need backed by industry best, 2 years / 5000 hrs warranty, for the entire generating set. With superior experience in technology, design capability and commitment reliability and quality we offer an unmatched 5 years or 5000 hours (including above 2 years) warranty coverage on 5 critical components (5C) of the engine – Cylinder Head, Camshaft, Crankshaft, Cylinder Block, Connecting Rod against manufacturing defect.

Cummins Advantage:
  • Special features of Cummins® ‘K50 series’ engines like STC (Step Timing Controls) injectors, low temperature aftercooler, square cumbustion chamber, optimised turbocharging and precision heavy duty camshaft make these engines the ultimate in exceptional fuel efficiency all across the operating range.

Single Source Power Assurance:
  • Design, manufacture and testing of engine, alternator and other accessories is done by Cummins Group of companies for optimum performance and is backed by a countrywide product support network with a single source responsibility for the entire package.

Standard Scope:
  • Engine Cummins® ‘K50 series’ direct injection, water cooled engine, 16 cylinder, 4 stroke, rated at 1500 RPM, conforming to ISO 3046 / IS 13018 has the following. specifications:
  • Cummins PT fuel pump
  • Cummins heavy duty ESTC injectors
  • Holset turbocharger, pulse tuned exhaust manifold,
  • stainless steel exhaust flexible connections
  •  Radiator or heat exchanger, coolant inhibitor
  • Plate type lube oil cooler
  • Outboard aftercoolers
  • Full flow paper element filters - fuel, lube oil and bypass
  • Dry type replaceable paper element air cleaner with
  • restriction indicator
  • Flywheel housing & flywheel to suit single/ double
  • bearing alternator
  • Holset flexible coupling for double bearing alternator
  • Starting motor – Electric, battery charging alternator
  • Cummins PowerCommand® microprocessor based
  • genset controller
  • First fill lube oil and coolant.

Alternator:
  • Seperately excited, self-regulated - Class ‘H’ insulation
  • Salient pole revolving field
  • Single bearing
  • PMG standard
  • Space heater & RTD & BTD’s only sensor - (without scanner).

Accessories:
  • Silencer suitably optimized to reduce noise
  • Sturdy base rail
  • 990 ltrs. free standing fuel tank
  • 4 x 12 V dry, uncharged batteries with connecting leads and terminals.
